Replacing a Davis Vantage Pro-2 Anemometer
« on: September 12, 2018, 10:40:26 PM »
Dear WeatherCat station caregivers,

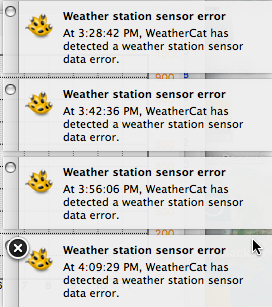

Late last week I noticed that my anemometer wasn't reporting any wind.  I took a look and found . . . . this!



So . . . grumble, grumble, grumble, . . . . I grabbed a pole long enough to give the wind speed cups a kick to free them from the spider web.  When I did this there was an ominous development - WeatherCat didn't report any wind speed.  I repeated this procedure with sadly the same results.  I don't know if the anemometer had failed before I gave it a kick or if my pole was too harsh and broke the mechanism.  Either way I had lost my wind speed sensor.

All this happened just before the Orinda Classic Car show so I had to let this matter slide until Sunday when I could start to respond to it.  Since I have gotten some real help from Ryan Wilhour at Scaled Instruments back in 2014, I ordered a replacement Davis Vantage Pro-2 Anemometer from him:

https://www.scaledinstruments.com/shop/davis-instruments/davis-6410-anemometer-for-vantage-pro2-vantage-pro/

There are a number of really good discount vendors out there, so this isn't an exclusive endorsement.  It is simply a result of my personal experiences.  By the way Ryan is having a sale on some Davis components, so if you might have a need you might check his website out:

https://www.scaledinstruments.com/

I paid the extra cost of having the anemometer shipped by the USPS next day air.  It did arrive on time at a fraction of the cost of a private delivery company's price.

Unfortunately, my anemometer mast is secured to the house at a location that is full south and therefore extremely hot when in the sunlight.  The days are getting shorter but the heat was such that I couldn't do this job much before 4pm when the mast was in the shade.  I never intended to replace the anemometer so with some concern I tried to remove the wood screws securing the mast bracket on Monday afternoon.  Fortunately, the bracket came free without any difficulties.

Yesterday the anemometer arrived and was packaged as can be seen in this photo:



While doing the work, I decided to simply unplug the anemometer cable and let WeatherCat continue running.  It dutifully noted sensor errors but since I knew why there was no reason to be concerned.  My 'WC Status Growler' AppleScript even reported the errors:



I was pleased to see this since this AppleScript has been fickle in the past to report sensor errors.

I removed the old anemometer and took this photo of the old and new side by side:



While there is no obvious signs of damage, it is clear that 9 years of being out-of-doors had taken it toll on the old anemometer.  I carefully marked the location of the old anemometer so that the new one would be in the same position with respect to North and then I put on the new anemometer using the new hardware that Davis supplies.  I then secured the cable along the mast with cable ties as can be seen here:



At this point I had to splice the signal cables into the old 50+ foot long cable that runs from the deck where the ISS transmitter is located to the anemometer mast.  I had to purchase an 8 foot cable to get the splice kit since Davis no longer sells the splice kit separately.  Since the day was already running short, I just spliced the cables and stopped there.  I'll have to come back later to place the splice in the Davis supplied housing.

Before putting the mast back up I thought it was prudent to test everything and make sure the new anemometer was working properly.

 ;) . . . . So I huffed, and puffed, and b-b-b-bblew at the anemometer cups!

So much so that I caused a high wind warning!!!



NOT!!   [biggrin]

With the anemometer working properly, it was time to raise the mast.  Luckily, I had purchased too many of the wood screws used to secure the mast bracket to the house, so I was able to replace all the screws.  I use a somewhat unusual procedure to secure heavy objects to the house in that I use Gorilla Glue:

https://www.gorillatough.com/product/original-gorilla-glue/

It is a polyurethane-based glue with some usual properties.  The key property I exploit is that it is drawn toward moisture.  Before putting the anemometer mast back up I first squirted some water into the screw-holes and let it sit for a few minutes.  I then put in a squirt of Gorilla Glue just before putting the mast back up and securing it with the wood screws.  Gorilla Glue will be drawn into any spots in the wood where the moisture has reached and then expands forming what is a effectively a "chemical anchor" to secure the screw.  Since our house was built in 1947 out of very nice but soft redwood, the Gorilla Glue effectively spreads the stresses to a larger region of the wood insuring that the mast will remain secure.

This morning the skies were kind enough to make something of a display to greet the new anemometer:



So after 5 days, my weather station is once more able to dutifully report all the data expected of a Davis Vantage Pro-2!

Cheers, Edouard  [cheers1]

P.S. I will add a posting explaining how to use the Davis cable splicing kits as soon as that task is finally accomplished.

xairbusdriver

  • Storm
  • *****
  • Posts: 2107
    • EW7115 (E7115)
    • KTNGERMA20
    • Mid-South Weather
  • Station Details: Davis VP2 wireless + remote Anemometer/2014 Mac min - 10.13.4/WC 3.0
Re: Replacing a Davis Vantage Pro-2 Anemometer
« Reply #1 on: September 13, 2018, 12:23:18 AM »
Congratulations on a job well done! Although I think all you needed to do was to wax and buff the old hardware... surely you have some good wax around that wagon... oh well, hope you remember my 'tip' in 2027! [rolleyes2]

Weatheraardvark

  • Strong Breeze
  • ***
  • Posts: 248
  • Here are tornado sirens, lets go outside look
    • C0005
    • KIADESMI1
    • Des Moines Weather and Climate
  • Station Details: Davis VP2 Plus, is that better?
Re: Replacing a Davis Vantage Pro-2 Anemometer
« Reply #2 on: September 13, 2018, 02:43:00 AM »
Very informative.  I have two  anemometers, one at 33 feet and the other at 7.  I will never be able to take care of the 33 foot one when if it fails.   Yet it is the best location. Face it 71 with bad back isn't going to go that route.   Sometimes the wind cups won't turn, some time they do . Considering they have been up there since 1993 probably some wear and tear on the bearings .  However  I liked the use of the Gorilla glue and how you have odne it.  Our home is 1942 ,brick with a steel shingle roof, not a lot of opportunity to put up a replacement unit, so it is the 7 foot.   We had a flood down the basement in June, well most of the city had it.  My wife decided to call 1800 got junk and threw away my backup anemometer.

Ray is a great resource of supplies.  He has always been straight with me and great deals and advice.  One of the advantages of living in the US.

Best of everything.
Davis VP2 Plus; 24h  FARS; Extra Temp Humid sensor (2); Extra Temp Station (2); Soil Moisture/Temp Station;Weatherlink IP;; MAC Sierra; Webcam
https://www.desmoinesweather.org

elagache

  • Global Moderator
  • Storm
  • *****
  • Posts: 4889
    • DW3835
    • KCAORIND10
    • Canebas Weather
  • Station Details: Davis Vantage Pro-2, MacBook Pro (Early 2011)
Thanks guys! (Re: Replacing Anemometer)
« Reply #3 on: September 13, 2018, 11:22:45 PM »
Dear X-Air, Weatheraardvark, and WeatherCat station caregivers,

Thanks guys!  [bounce]

Congratulations on a job well done! Although I think all you needed to do was to wax and buff the old hardware...

Well, . . . . . since turning the wind cups wasn't registering any speed I think it would take a wee bit more than a wax job.  I did keep it just in case a repair was possible.  However, the mechanism is a mighty small device to fit in the space between the wind cups and the wind direction wane.

Surely you have some good wax around that wagon...

Of course!  These days only Griot's Garage Liquid Gloss Poly Wax will due:

https://www.griotsgarage.com/product/liquid+gloss+poly+wax.do

Very informative.  I have two  anemometers, one at 33 feet and the other at 7.  I will never be able to take care of the 33 foot one when if it fails.

I understand your predicament.  My anemometer is only about 7 feet off the roof as well.  However, we are on the wind-sheltered side of a hill with tall trees all around.  There was simply no point in my case to try to get actual wind speeds.  I would need a 200 foot tower at least!

However  I liked the use of the Gorilla glue and how you have done it.  Our home is 1942 ,brick with a steel shingle roof, not a lot of opportunity to put up a replacement unit, so it is the 7 foot.

Does your house have plaster or sheet-rock panels for the interior?  Our house has old-fashioned plaster walls supported by a steel mesh.  I came up with the Gorilla glue trick because I couldn't find any other way to secure things to the walls or ceilings.  Conventional anchors just crack the plaster.  However, if you drill a hole and then wet the plaster around the hole, the Gorilla glue will expand into the gaps.  If you leave Gorilla glue to cure in air you'll see that it expands very much like a foam insulation.  So it really does spread into the plaster and make something that is substantially stronger than the plaster alone ever was.

Ryan is a great resource of supplies.  He has always been straight with me and great deals and advice.  One of the advantages of living in the US.

Other WeatherCatters have also had great experiences with the other discount weather instrument vendors, but I certainly whole-heartedly recommend Ryan Wilhour and Scaled Instruments.

Cheers, Edouard  [cheers1]

Blicj11

  • Storm
  • *****
  • Posts: 2921
    • EW3808
    • KUTHEBER6
    • Timber Lakes Utah
  • Station Details: Davis Vantage Pro2 Plus | WeatherLinkIP™ Data Logger | iMac (late 2013), 3.5 GHz Intel Core i7, 24 GB RAM, macOS High Sierra | Sharx SCNC2900 Webcam | Supportive Wife
Re: Replacing a Davis Vantage Pro-2 Anemometer
« Reply #4 on: September 14, 2018, 01:04:47 AM »
The photo of your new anonometer installed against the sky as a backdrop looks suspiciously identical to your old one.
Blick


elagache

  • Global Moderator
  • Storm
  • *****
  • Posts: 4889
    • DW3835
    • KCAORIND10
    • Canebas Weather
  • Station Details: Davis Vantage Pro-2, MacBook Pro (Early 2011)
Using a Davis cable splicing kit. (Re: Replacing Anemometer)
« Reply #5 on: September 14, 2018, 11:14:52 PM »
Dear Blick and WeatherCat station caregivers,

As promised, here is the next installment on my anemometer installation saga.  On Tuesday I left the cable spliced together but had not put the cables in a weather-proof housing.  Yesterday I got around to putting the splice into the housing.  In a sadistic bit of marketing, you can no longer buy just the Davis coupler kit 7957.  Instead you have to buy some length of cable.  So I knuckled under and bought the shortest extension kit Davis buys.  At least you can view the instructions for the coupler kit online:

https://www.davisinstruments.com/product_documents/weather/manuals/07395-010_IM_07957.pdf

This kit consists of a plastic housing, 3M Scotchlok cable connectors and required hardware.  What makes these splicing operation easy and robust is the Scotchlok connectors:

https://www.3m.com/3M/en_LB/company-mea/all-3m-products/~/3M-Scotchlok-IDC-Butt-Connector-UY2-Box/?N=5002385+8709315+8710679+8711017+8711734+3294770255&rt=rud

They are a guillotine style connector with a metal blade that cuts through the wire insulation when you squeeze on the connector.  This process also releases a sealant that prevents moisture from reaching the wires.  Here is what the splice looked like close-up:



You can clearly see the metal blade making contact with the wires.  As the manual recommends, the key process is to secure the outer cable insulation so that there is no strain on the individual exposed wires.  Per Davis's suggestion, I used a cable tie to secure the two cables:



Below the spliced cables is 1/2 of the weather-proof housing.  I printed a label to make it easy to identify which sensor is associated with this cable.  I've had good success with printed paper labels and transparent tape.  Although a more robust solution would be to use one of the original mechanical Dymo labeler.

As an extra precaution, I applied silicone sealant to the edges of the weather-proof box.  That should keep water out in all but the most extreme circumstances.  Here is the final result:



If you look carefully, you can see the sheen of the sealant on the edges of the box and on the outer insulator of the cables.

My anemometer installation should now be ready for the rigors of winter.

Cheers, Edouard  [cheers1]

Blicj11

  • Storm
  • *****
  • Posts: 2921
    • EW3808
    • KUTHEBER6
    • Timber Lakes Utah
  • Station Details: Davis Vantage Pro2 Plus | WeatherLinkIP™ Data Logger | iMac (late 2013), 3.5 GHz Intel Core i7, 24 GB RAM, macOS High Sierra | Sharx SCNC2900 Webcam | Supportive Wife
Re: Replacing a Davis Vantage Pro-2 Anemometer
« Reply #6 on: September 15, 2018, 07:35:06 PM »
Edouard, you always do a really nice job of describing what you do and why. The photos are an extra nice touch. Thank you for taking the time to share this with us, as everyone will eventually have to replace their hardware components. Fortunately, Davis components are a lot more durable than the $100 weather stations you can buy everywhere.
Blick


elagache

  • Global Moderator
  • Storm
  • *****
  • Posts: 4889
    • DW3835
    • KCAORIND10
    • Canebas Weather
  • Station Details: Davis Vantage Pro-2, MacBook Pro (Early 2011)
Bonus! Upgraded debris screen! (Re: Replacing Anemometer)
« Reply #7 on: September 15, 2018, 10:51:30 PM »
Dear Blick and WeatherCat station caregivers,

Edouard, you always do a really nice job of describing what you do and why. The photos are an extra nice touch. Thank you for taking the time to share this with us, as everyone will eventually have to replace their hardware components.

You are certainly most welcome!

As you say, odd are high we'll have to perform some sort maintenance on our stations.  When that happens it is a good time to upgrade to any components you wanted to purchase but weren't willing to pay the shipping for such a small item.  I don't remember when Davis announced their upgraded rain gauge debris screen, but we have a post mentioning it over 3 years ago:

http://athena.trixology.com/index.php?topic=1735.msg15299#msg15299

I had decided to purchase the upgraded screen whenever I had a decent excuse and lucky for me I didn't forgot to include it in this order.  So I have one more batch of photos to share.  Here is the comparison photo:



This shows something that I wasn't aware of until the new screen arrived.  As you can see it is substantially larger than the simpler design it replaces.  Here is the old design in the collector cone:



It is definitely minimalist.  Here is the installed upgraded screen:



So has a number of more recent owners of Davis stations have attested, purchasing the upgraded debris screen is definitely something not to forget on your next weather instrument purchase list.

Cheers, Edouard  [cheers1]

Blicj11

  • Storm
  • *****
  • Posts: 2921
    • EW3808
    • KUTHEBER6
    • Timber Lakes Utah
  • Station Details: Davis Vantage Pro2 Plus | WeatherLinkIP™ Data Logger | iMac (late 2013), 3.5 GHz Intel Core i7, 24 GB RAM, macOS High Sierra | Sharx SCNC2900 Webcam | Supportive Wife
Re: Replacing a Davis Vantage Pro-2 Anemometer
« Reply #8 on: September 16, 2018, 04:58:35 AM »
I don't know how I missed this, but I didn't even know it was an option. Thanks for the info.
Blick


elagache

  • Global Moderator
  • Storm
  • *****
  • Posts: 4889
    • DW3835
    • KCAORIND10
    • Canebas Weather
  • Station Details: Davis Vantage Pro-2, MacBook Pro (Early 2011)
Debris screen links (Re: Replacing Anemometer)
« Reply #9 on: September 16, 2018, 10:42:35 PM »
Dear Blick and WeatherCat station caregivers,

I don't know how I missed this, but I didn't even know it was an option. Thanks for the info.

You are welcome!   :)

In that case perhaps I should provide some links.  Here is the link to the Davis product page:

https://www.davisinstruments.com/product/bird-spikedebris-screen-kit/

Here is the product for sale at Scaled Instruments:

https://www.scaledinstruments.com/shop/davis-instruments/davis-7345-530-pro2-bird-spikedebris-screen-kit/

Unfortunately neither provides any sort of free shipping which is why you should try to remember this item when you need something else for your weather station.

Cheers, Edouard  [cheers1]

Blicj11

  • Storm
  • *****
  • Posts: 2921
    • EW3808
    • KUTHEBER6
    • Timber Lakes Utah
  • Station Details: Davis Vantage Pro2 Plus | WeatherLinkIP™ Data Logger | iMac (late 2013), 3.5 GHz Intel Core i7, 24 GB RAM, macOS High Sierra | Sharx SCNC2900 Webcam | Supportive Wife
Re: Replacing a Davis Vantage Pro-2 Anemometer
« Reply #10 on: September 17, 2018, 04:28:29 PM »
I don't think my rain cone has grip grooves for those spikes. Are you using one of the new Aero style collector cones or did you just not install the spikes?
Blick


Weatheraardvark

  • Strong Breeze
  • ***
  • Posts: 248
  • Here are tornado sirens, lets go outside look
    • C0005
    • KIADESMI1
    • Des Moines Weather and Climate
  • Station Details: Davis VP2 Plus, is that better?
Re: Replacing a Davis Vantage Pro-2 Anemometer
« Reply #11 on: September 17, 2018, 05:05:18 PM »
I found that with the Davis debris screens, crud still got through, sometimes tiny sticks.  I went with a drain strainer instead and have had great results over the yearsl
Davis VP2 Plus; 24h  FARS; Extra Temp Humid sensor (2); Extra Temp Station (2); Soil Moisture/Temp Station;Weatherlink IP;; MAC Sierra; Webcam
https://www.desmoinesweather.org

Blicj11

  • Storm
  • *****
  • Posts: 2921
    • EW3808
    • KUTHEBER6
    • Timber Lakes Utah
  • Station Details: Davis Vantage Pro2 Plus | WeatherLinkIP™ Data Logger | iMac (late 2013), 3.5 GHz Intel Core i7, 24 GB RAM, macOS High Sierra | Sharx SCNC2900 Webcam | Supportive Wife
Re: Replacing a Davis Vantage Pro-2 Anemometer
« Reply #12 on: September 17, 2018, 05:11:16 PM »
Hey, what a great idea. I even have one of those sitting around somewhere. Thanks Weatheraardvark.
Blick


xairbusdriver

  • Storm
  • *****
  • Posts: 2107
    • EW7115 (E7115)
    • KTNGERMA20
    • Mid-South Weather
  • Station Details: Davis VP2 wireless + remote Anemometer/2014 Mac min - 10.13.4/WC 3.0
Re: Replacing a Davis Vantage Pro-2 Anemometer
« Reply #13 on: September 17, 2018, 08:13:49 PM »
I just noticed that the newest center debris protector has slots for mating with 'fingers' molded into the bottom of the collector cone. That's a feature missing on my 2015 collector. Good addition as I've found my center protector knocked over practically eliminated from doing its job. [rolleyes2] Those 'fingers probably come on the newer 'turbo' collector. ??? Something to remember next time I need to replace anything. ThU32:-)
